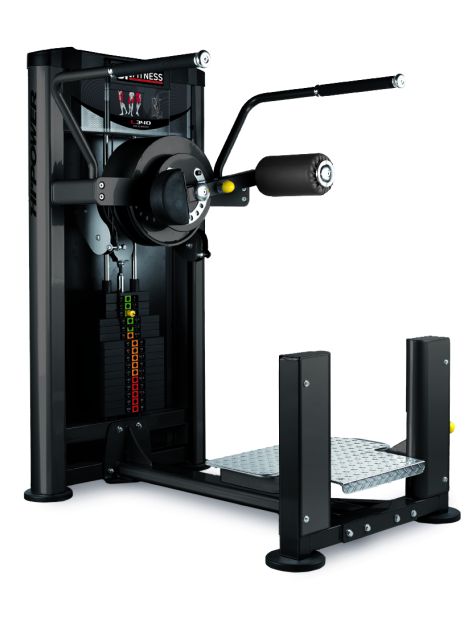

BH Fitness TR Line naprava za boke Total Hip

Features

The training arm is adjustable to a 180º range of movement.
With 11 different working positions that make possible perform different kind of exercises.

Support platform with height adjustment.
A pull knob and a handle holding at the platform help the user to get the ideal height in order to align the hip with the rotation axis.

Setting elements are bright contrasting yellow.
They provide a quick and easy visual identification of the selectors to be adjusted by any user, without help from the coach.

Side grips.
As support and fi xing points for the user.

Visual level indicator of weight training in 3 colors depending on the level of charge: Light, medium y advanced (green, yellow and red).
Intuitive system that helps the user to quickly identify the load and the development or progression at the exercise.

Information panel showing worked muscle groups and exercise position. This helps the user locate the machine quickly and use it correctly.

Front and rear fairings.
Provides greater security to the user during exercise, avoiding accidents while the plates are moving.

Magnetic weight plate selectors
The magnets ensure that there is no possibility of the selector coming out during training. Some inexperienced users tend to knock the plates, which can cause the selector to come out in the middle of the training session, with the subsequent risk of injury.

High resistance 5 mm thick coated steel cable
For a smooth, secure performance

4 mm thick ST-37 / 40 steel frame
For guaranteed durability

Three layer coating
The design of this professional, up-to-date, stylish system is enhanced still further by its -layer coating comprising an initial anti-corrosion primer, for guaranteed durability, followed by an epoxy powder layer and finished with lacquer or varnish.

High protection polycarbonate fairings. Knock-proof. Providing prevention against accidents. Very easy to clean.

Structure raised 50 mm above floor level with rubber tipped feet. This provides access for cleaning and vacuuming without scratching the paint

Use of “cams” to produce even weight distribution. The cam system used on this model keeps the power arm at a constant setting throughout the whole movement. This biomechanical improvement prevents overuse of the Golgi tendon organ which controls muscular tension

Weight stack with weight indicators in Kg / 0Weight stack with weight indicators in lbs and lbs.

With position selectors of the angle of training of the arm.
It allows to regulate the most appropiate angle of training for each user, adapting the starting and/or ending position.

Counterbalanced arms.
Override the weight of the structure to be moved in order to lift only the selected weight plates.

Design with lower profile and solid outline.
For a more visually striking and elegant line.

Reliable and durable design with optimized safety and comfort.
Designed under the highest biomechanical standards and based on thorough studies of the anatomy of each muscle and its behavior during exercise. It ensures a range of soft and progressive exercise and a natural, precise and fluid movement.

This machine is available in standard Basic model and with optional Solar Kit, with self-powered monitor trough photovoltaic panels (wireless, 0 electric consumption, maximum freedom). Information provided:
- Right repetitions completed
- Percentage completed
- Range of exercices in each repetition
- Calories
- Total weight lifted
- Rest time between sessions

Specifications

Length: 100 cm / 39”

Width: 129 cm / 51”

Height: 148,5 cm / 58”

Weight: 238Kg / 525 lbs.

Load: 91Kg / 201 lbs. Optional: 125Kg / 276 lbs.
